Lyon Crystal Thermostatic 3 Outlet Shower System Set

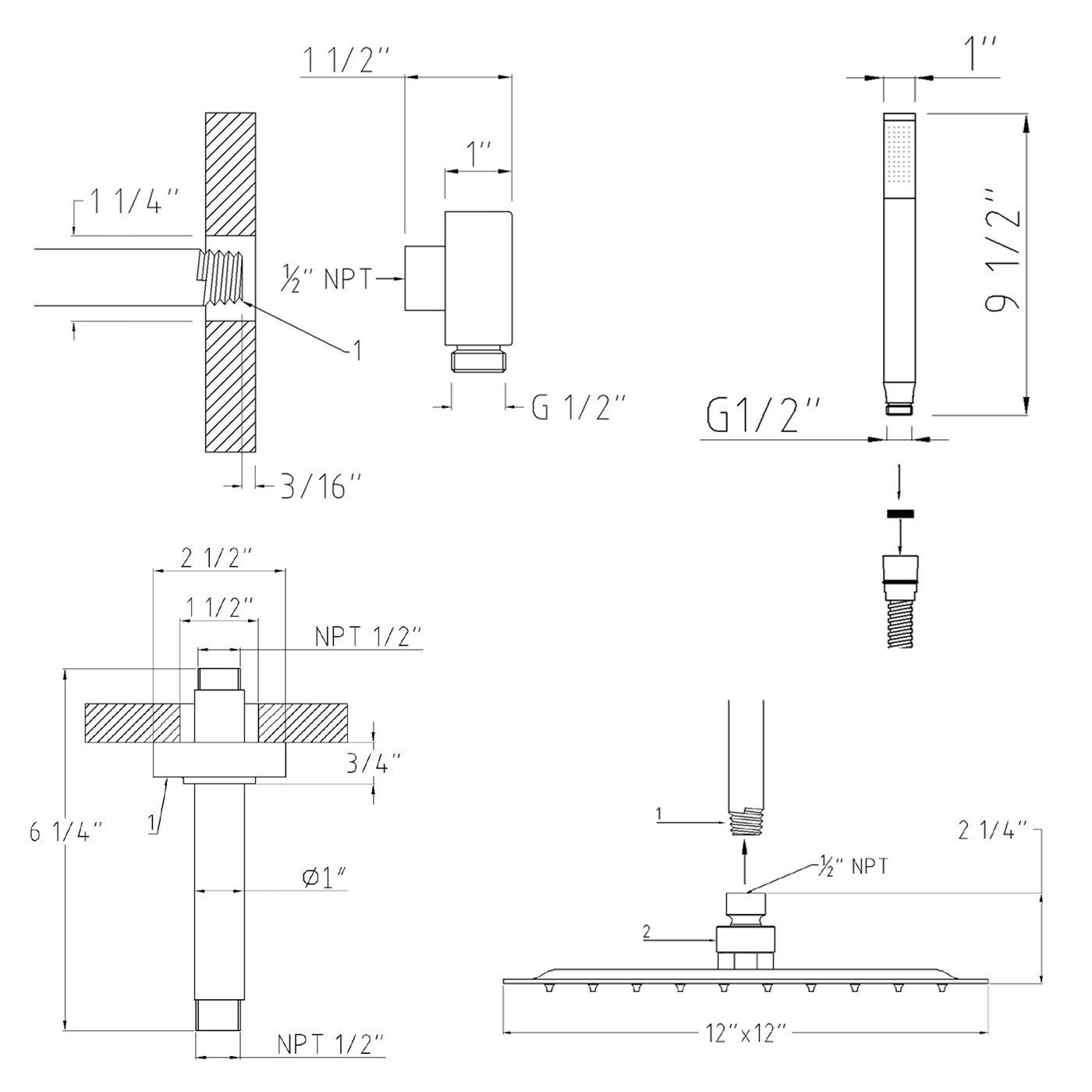

Enjoy a luxurious showering experience with the crystal shower system. This stylish shower kit comes complete with the triple thermostatic valve, 12" fixed head with ceiling mounted arm, slide rail kit and six body jets. The thermostatic shower valve incorporates ceramic disc technology and a built-in anti-scald device for peace of mind.
Featuring easy to clean nozzles, the fixed head delivers a refreshing rainfall effect, while the body jets massage away aches and pains.
Thermostatic Triple Shower Valve Details
Solid brass rough-in valve
Serviceable check valves and strainers
Ceramic Disc Technology
Built-in diverter
Pre-set maximum temperature 104ºf
Automatic anti scald device
Recommended pressure for best performance 2 to 75 psi
½" NPT Inlets and Outlets Compatible with standard US plumbing connections
Compatible with combi boilers, gravity fed systems, unwanted mains pressure systems and for shower pumps
Warranty: 1 year of manufacturing warranty
Body Jet Details
Chrome finish
Sliding collar
1/2" NPT inlet
Easy clean nozzles
9.5L/min 2.5gpm regulator installed
Made from solid brass
Single spray pattern
12" Square Shower Head Details
1/2" NPT inlets
Chrome finish
Easy clean nozzles
9.5L/min 2.5gpm regulator installed
Shower Consists of:
Triple Diverter Valve Body Only Concealed
Triple Trim Plate (Square Flange)
Crosshead Temperature Handle
Crosshead Flow Control Handle
Square Body Sprays
Kubix Slider Rail Kit
59” Double Lock
1/2" Double Check Valve Connector with DW15 Check Valves
