We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.
Product Specification:
Brand: Juno Commercial
Product Code: JCSP6078

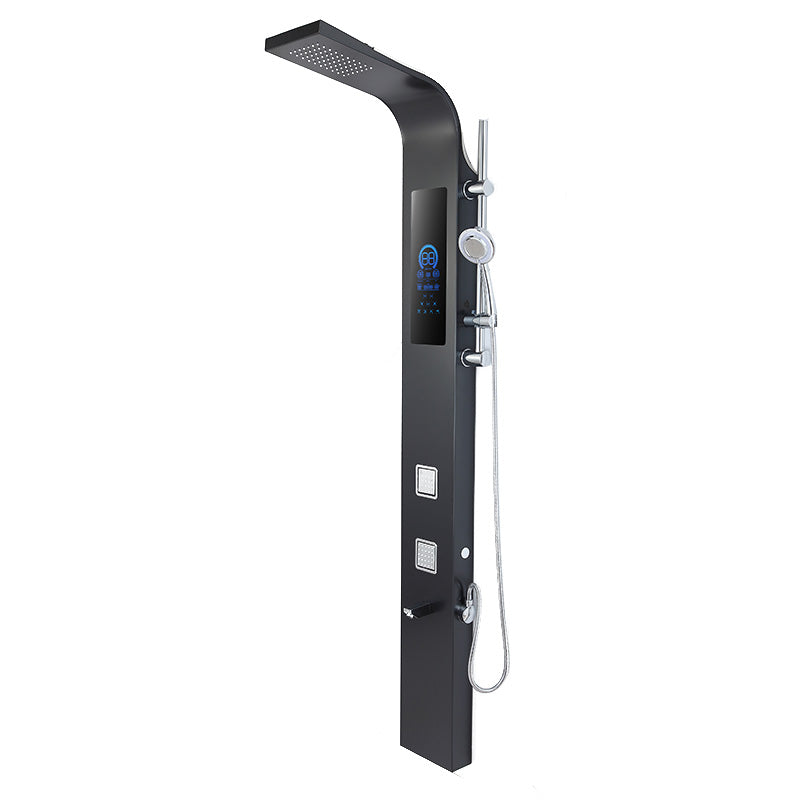

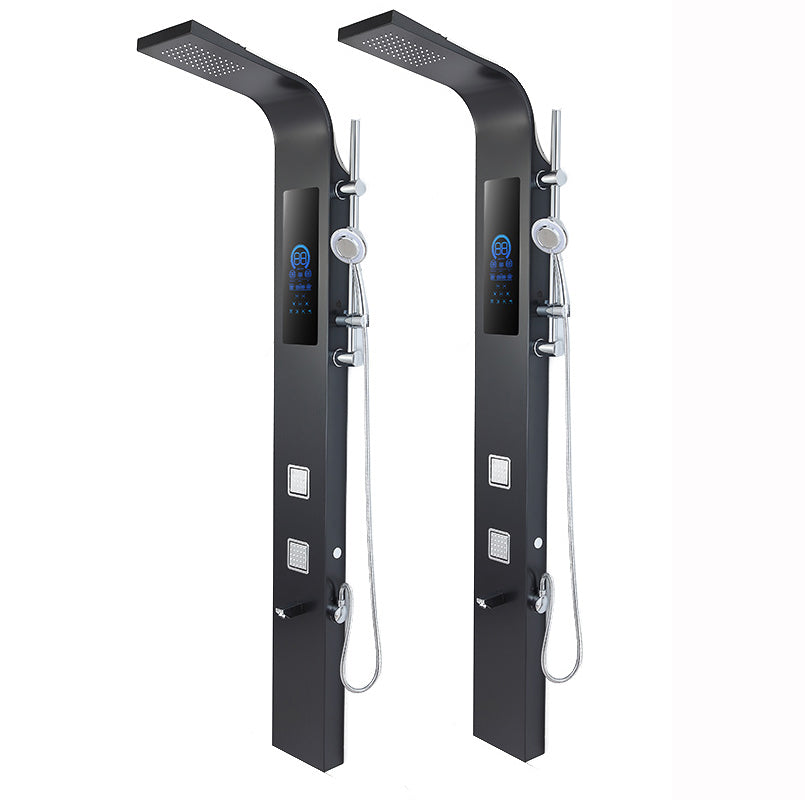

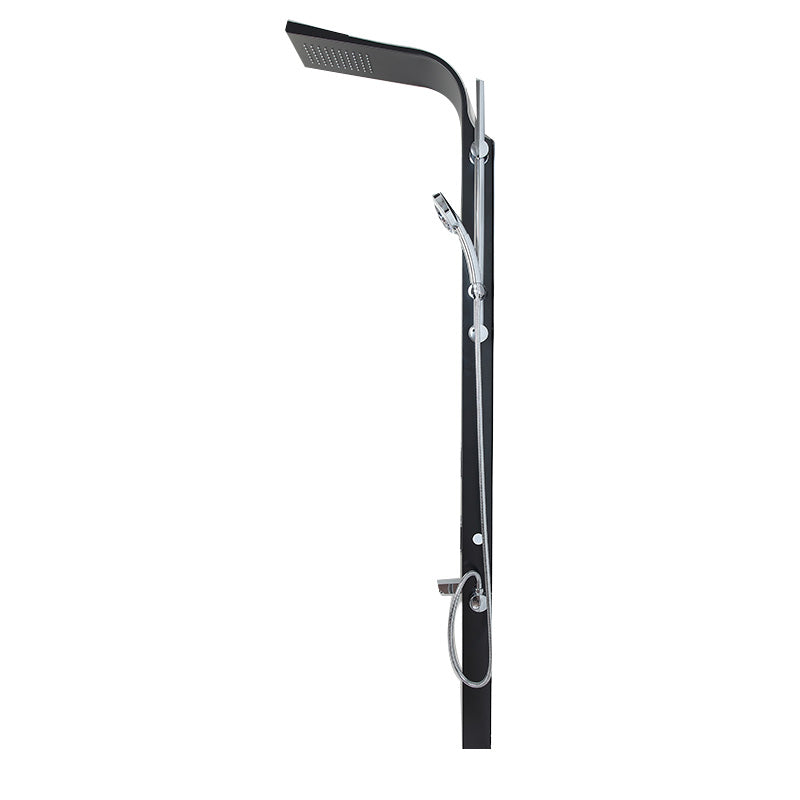

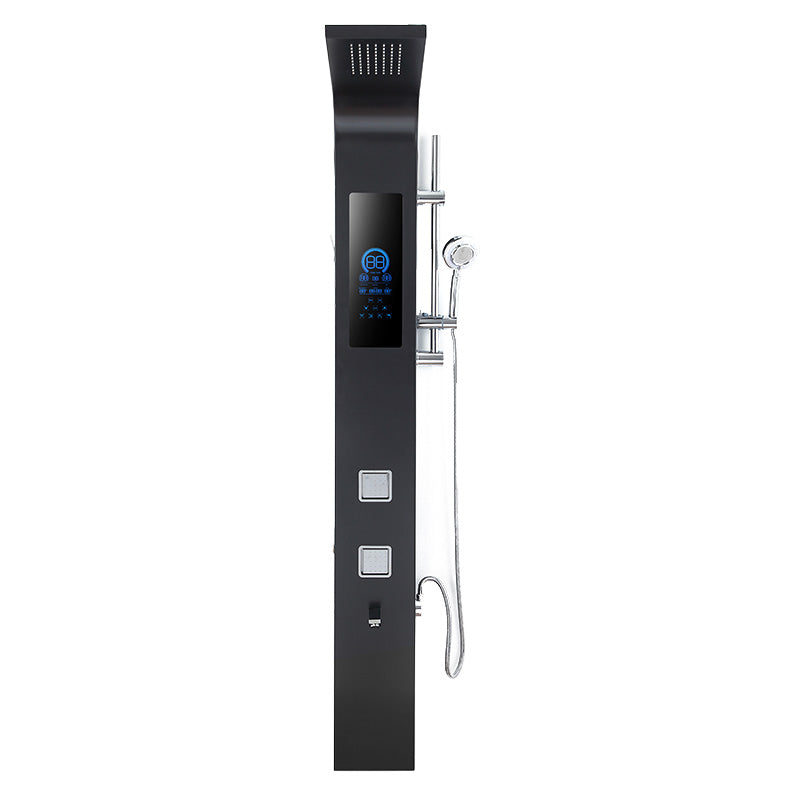

Type: Shower Panel
Material: Stainless Steel
Style: Modern
Control: Touch Control
Available Finishes: Black
Waterproof Grade: IPX4
Storage: Tankless
Power: 8.5-12KW
Product size: 2050*220*80[mm]
Voltage: 220 V~ 50/60Hz
Installation: Wall Mount
Thread connections: G 1/2"
Hot water output [l/min]: 4.8/5.6/6.7
Nominal power rating [kW]: 8.5/10/12
Voltage/[VAC]: 220 V
Nominal current[A]: 38.6/45.5/54.5
Requird cable diameter[mm²]: 4.0/6.0/10
Rated water pressure: 0.03-0.6MPa
Hot water temperature range: 35 ~ 55℃
Starting flow rate: 1.2 L/min.
Hot water flow rate: 5 - 7 L/min. (1.3 - 1.9 GPM)
