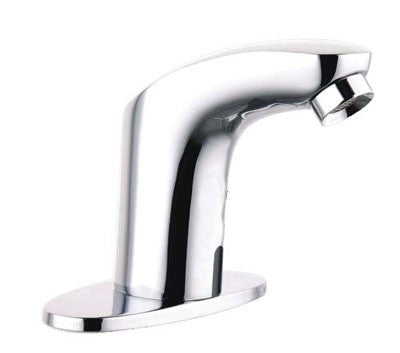

Juno Chrome Motion Sensor Faucet

Juno Chrome Motion Sensor Faucet

This Sensor Faucet has Solid Brass Construction, Polished Chrome Finish Water resistant solenoid enclosure. Advanced energy saving design for long lasting battery life Sensor faucet comes complete with Hoses & Accessories.

$509.89
$685.69 $509.89
Sold out
SKU: JSM5101

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

Materials

The item with the Committed label has a lower environmental impact because it was made with sustainable materials or methods. We are committed to creating items that combine sustainability with style. Made with recycled cashmere and industril by products.

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details
Ask For Customisation

Mirage Motion Sensor Faucet

Products Features:

Uses 4AAA Alkaline Batteries (purchase separately).
Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body, Ideal for Residential as well as commercial high use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator, a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mounted to any sink surface.
  • ADA Complaint
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Diameter of inlet pipe DN15
Diameter of outlet pipe DN15
Water Pressure 0.05Mpa - 0.7Mpa
Power and Voltage DC.6V
AC.220V - 50/60Hz
Power Consumption 0.5MW
<2W
Detection Zone Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature 1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure

1P56

This faucet is shipped complete.
  • ANSI A112.18.1M
  • CSA Standard B125,
  • 2.2 U.S.
  • Complies with NSF
  • Standard 61, Section 9
  • Stainless Steel Hoses
  • Mounting Hardware
  • Batteries Pre-installed
  • All the hardware necessary
  • for satisfactory installation

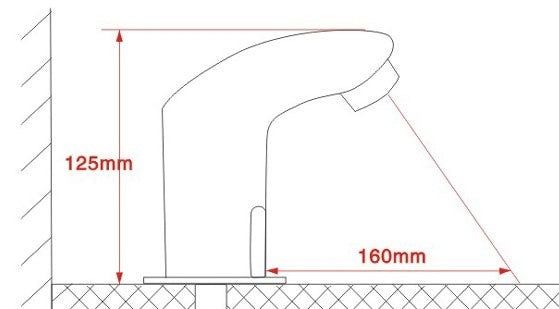

Specifications and Dimensions Spout: Chrome Plated Solid Brass sensor faucet

  • Power: 4 (AA) Alkaline Batteries or AC Adapter
  • Battery life expectancy: 200,000 cycles
  • Solenoid valve: 6 Volt magnet latching
  • Working Water Pressure: 1 PSI -100 PSI
  • Supply Inlet Size: 1/2” NPT Male
  • Water Temperature Control: Built-in
  • Pop-Up Drain Rod: N/A
  • Sensor type and Location: Active Infrared, Neck mount
  • Sensor Microprocessor: Digital, Pug And Play
  • Sensing Range: 2” to 6”
  • Response Time: 0.3 Second
  • Shut-Off Delay Time: 2 Seconds
  • Maximum Running Time: 60 Seconds
  • Particle filter size: 50 Mesh
  • Aerator: 2.2 GPM Standard

Main Features:

  • Water-saving: water flows out when your hands approach it and stops immediately
  • Hygienic: self-open and close to free hands from any touching, which can efficiently avoid bacteria mutual infections
  • Intelligent: with its micro-computer to controlling its action, the
  • faucet can self adjust its best detection zone as per the color and
  • shape of lavatory: Low power consumption: for 4 AA alkaline batteries can be used for 2 years at 200 cycles a day
  • Convenient to maintain: there is a strainer inside to prevent sundries
  • from entering the solenoid valve and the strainer is easy to clean



Sensor faucet installation instruction
